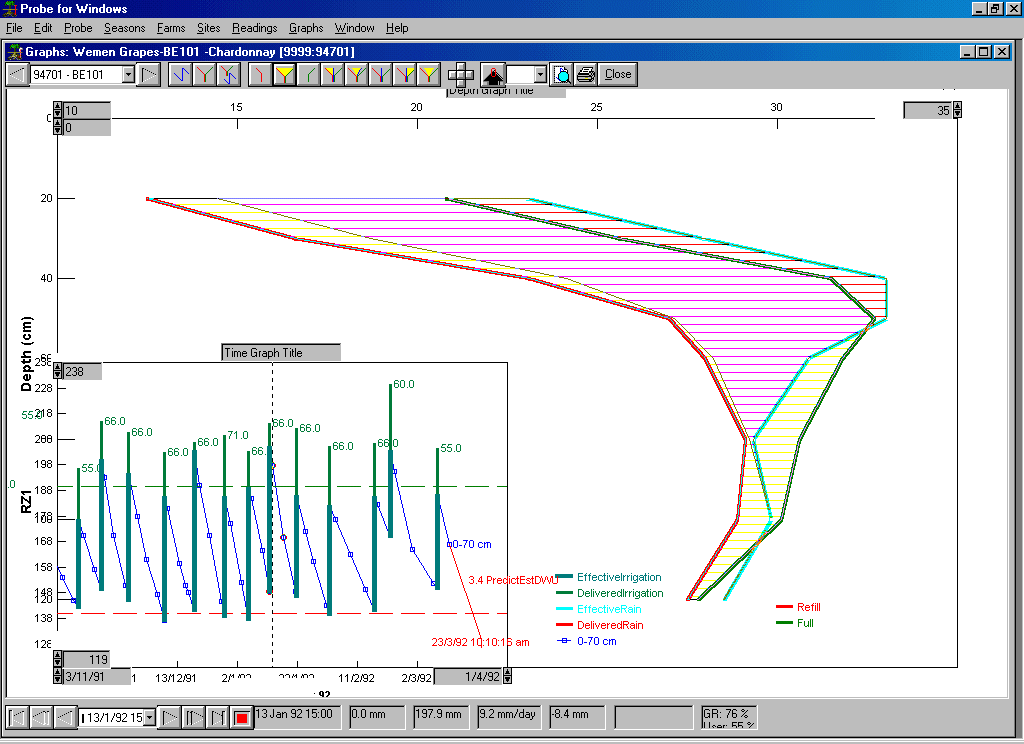

Both Depth and Time Graphs
A depth and time graph on the screen at the same time allows the user to step through
the season with the VCR control, while watching the readings change on both graphs - a
virtual test pit (e-Pit ?).
- Shading between profiles clearly shows changes in water content.
- The top tool bar allows you to 'flash' and show...
- The Refill and Full profiles
- The change between the last two readings
- How much water there is available before refill
- The bottom tool bar has...
- Status panels showing the value of root zone water content, crop water use, full and
refill points etc
- A VCR control to let you to ‘walk-through’ the season, one
profile at a time or fast-forward.
