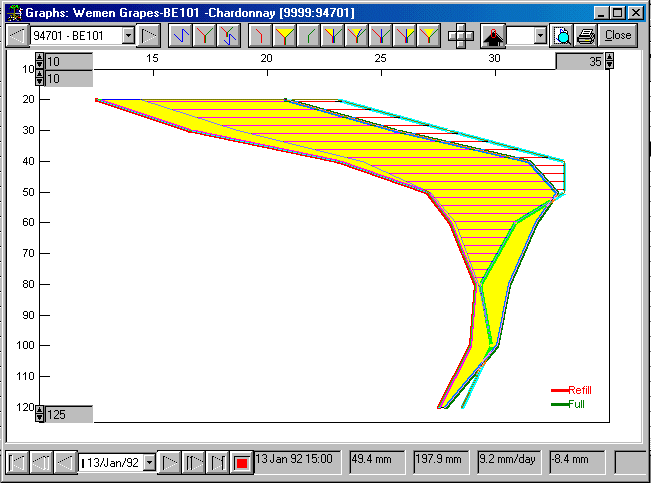

Depth graphs - the Virtual Test Pit
Identify over-irrigations, with water draining through the profile, or ineffective
irrigations leaving the soil dry at depth.
- Shading between profiles clearly shows changes in water content.
- Full and refill colours are set with graph styles - change the
‘Refill’ style to red and all refill profiles will change to red.
- The VCR control allows you to ‘walk-through’ the season, one profile at
a time or fast-forward.
- Erase the previous profile or display all profiles.
