Probe for Windows: Graph Styles

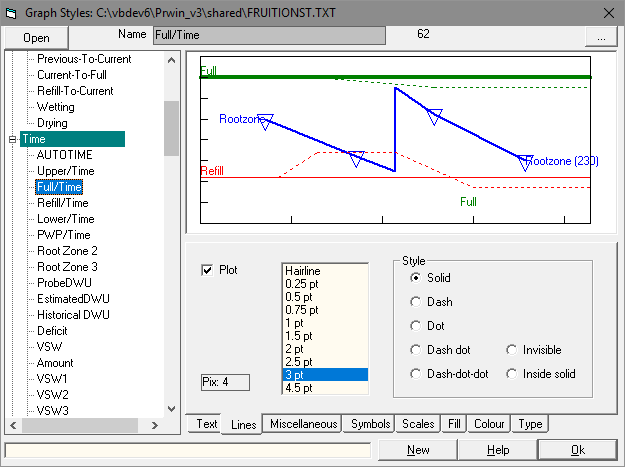

The style of items plotted by Probe for Windows can be styled - line size, colour, style, etc
The styles are grouped...
Root Zone
The ???
Depth
Styles for depth graphs
Time
Styles for time graphs
Gains
Styles for Gains - irrigations or rain - plotted on time graphs
Predictions
Styles for future predictions plotted on time graphs
Miscellaneous
Dry soil
Wet soil
Low water
Critical dates
User
Extra styles added by the user
Axes
Styling for axes

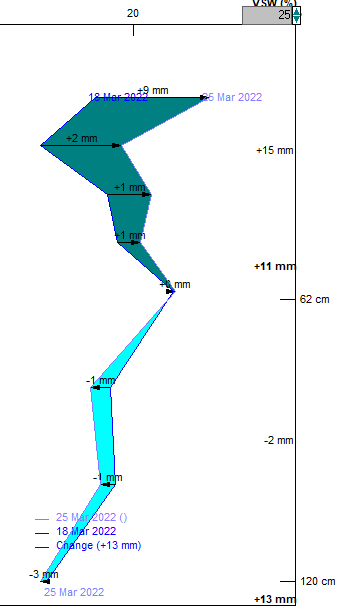

Depth Graph - last 2 readings
+13 mm total gain in the entire profile
+11 mm gain in 0-110cm Root Zone 1
+9 mm gain between the surface and 25 cm (ie using VSW at 20 cm)
+15 mm gain between the surface and 62 cm
-2 mm loss between 62 cm and 120 cm
| Style | Style.ID | ||
|---|---|---|---|
| Latest | [15] | Last reading taken | Line colour and style, labels, legend, last value |
| Previous | [73] | Previous reading | line colour and style, labels, legend, last value |
| Change | [24] | Change between latest and previous readings | arrows, values (mm change), axis on RHS, RZ1 change, Total change, legend (with mm change) |
| Wetting | [67] | Wetting | Fill colour, arrow colour |
| Drying | [68] | Drying | Fill colour, arrow colour |
